產品關鍵字：空變機,

產品分類：紡機,化纖機械

產品編號：YCKB-128型

用途：空氣變形絲

類型：化纖機械輔助設備

型號：YCKB-128型

規格：128錠

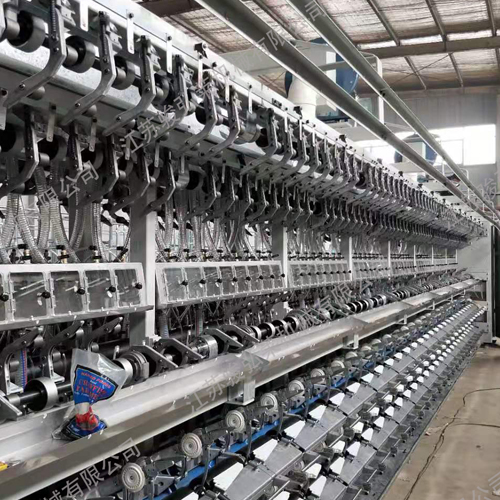

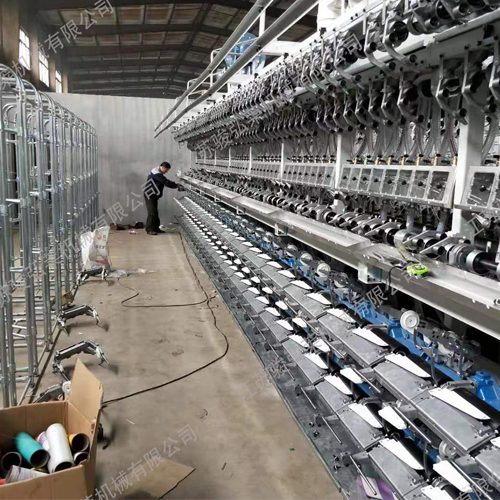

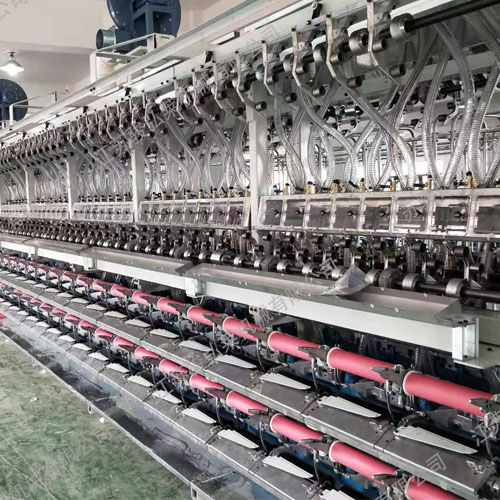

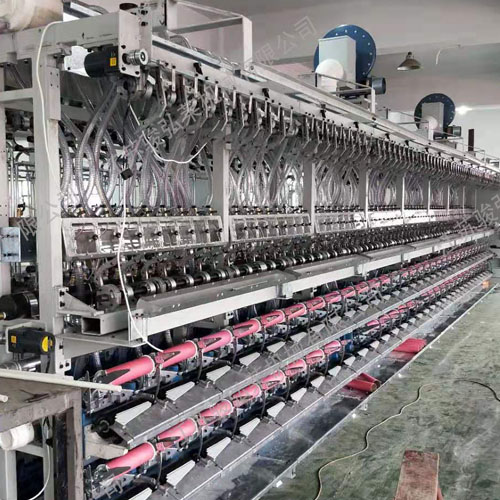

YCKB-80型空變機簡介

YCKB-80Introduction

產品分類：紡機，化纖機械

Product classification: textile machinery, chemical fiber machinery

產品類型：化纖機械輔助設備

product type ：Chemical fiber machinery auxiliary equipment

用途：空氣變形絲

purpose: air textured yarn

型號：YCKB-80

Model: yckb-80

規格：80錠

INGOTS: 80

一、 用途

Purpose

YCKB-80型空氣變形機是利用壓縮空氣對喂入的長絲進行空變加工方法來處理長絲，以獲得蓬松性，使產品產品空氣變形絲具有仿毛，仿棉，仿麻或仿絲的外觀和手感。

  本機可加工原料為滌綸,丙綸,錦綸等,供紡織機使用

Yckb-80 uses Compressed air to process the filament fed by air change, so as to obtain fluffy and make the air textured yarn have the appearance and feel of wool like, cotton like, hemp like or silk like.

This machine can process polyester, polypropylene, nylon, etc. for use in textile machines

二、主要技術參數

    Main technical parameters

機器型式：雙面式操作

Machine type: double-sided operation

節數：5節

Segments: 5

錠數：80錠

INGOTS: 80

造訪纖維密度： 600~2400D

Visit fiber density: 600 ~ 2400D

卷線筒管尺寸：Φ 75*290mm

Coil bobbin dimensions:Φ 75 x 290 mm



機器用電量：20kw

Machine power consumption: about 20KW

接入壓縮空氣：8~10kg/㎡ 16m3/min

ACCESS COMPRESSED AIR: 8 ~ 10kg/㎡ 16m3/min

機器尺寸：9000*9200*3500（長*寬*高）包括絲架

Machine Size: 9000 * 9200 * 3500(length * Width * Height)
